VC3102

Quick Overview

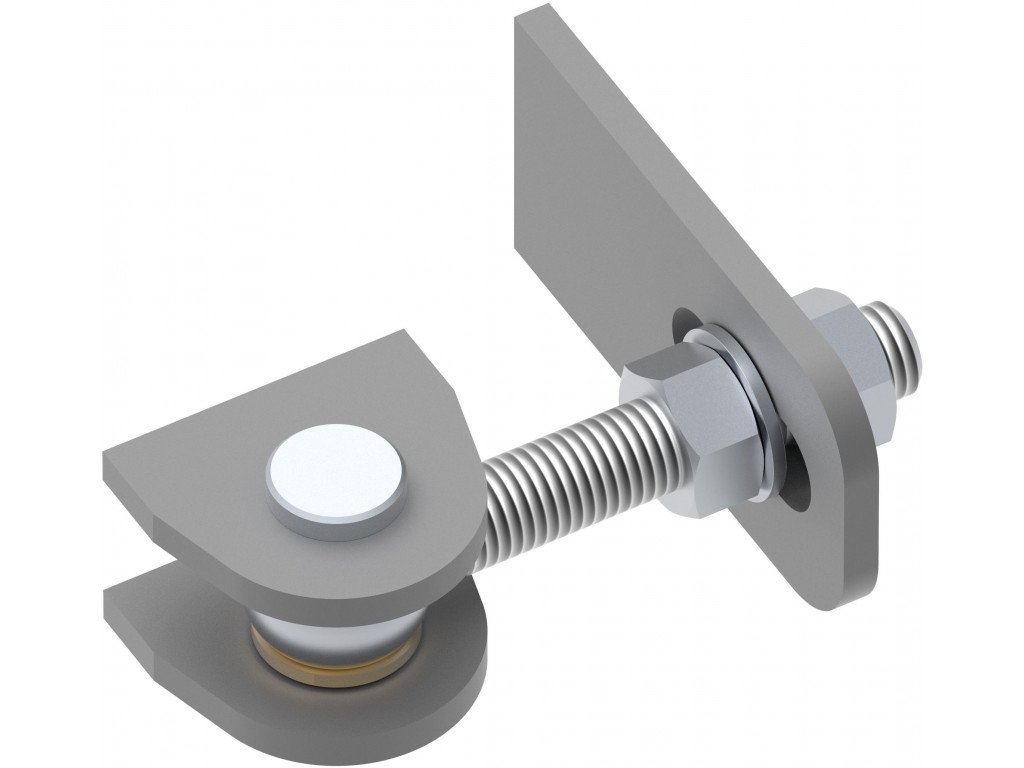

Two-way adjustment hinge (type 2) to weld

Details

Data sheet

Request product information

Name *
Company
Country
City
Phone *
Email *
Web site
Product
Cod. / Item
Requests *
Privacy Policy *
- By submitting this form, I agree to the privacy process and confirm that I will read all the conditions set out in the privacy page of this site.

What's 2 - 20 =

* Required Fields

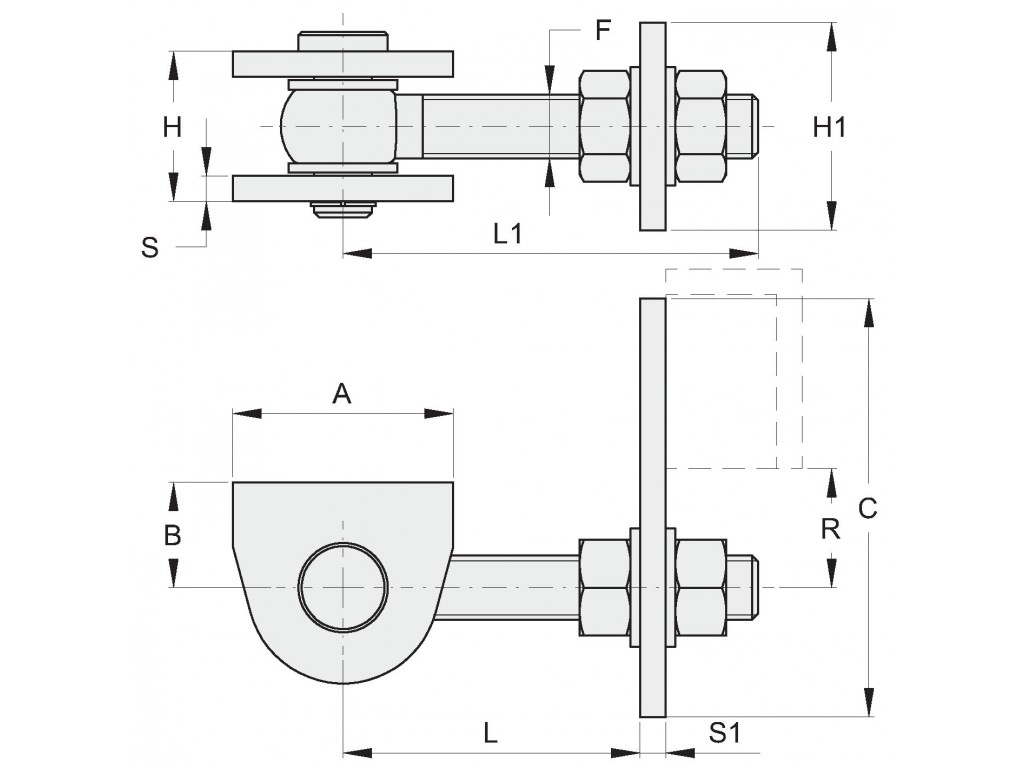

Cod.	Art.	F	S	H	A	B	S1	H1	C	L	L1	R		Finitura	Ricambi
VC3102.C12	5300.12	M12	6	33	45.5	24.5	6	50	75.5	40-80	103	14-26	8.00	GALV.
VC3102.C16	5300.16	M16	6	38	50.5	27	8	50	90	47-93	121	18-34	4.00	GALV.	Ric.
VC3102.C20	5300.20	M20	8	47	69	33	8	65	131	60-98	130	20-55	6.00	GALV.
VC3102.C24	5300.24	M24	8	52	69	33	12	75	131	60-115	152	25-47	4.00	GALV.

Specifiche
cod.	VC3102.C12
Art.	5300.12
F	M12
S	6
H	33
A	45.5
B	24.5
S1	6
H1	50
C	75.5
L	40-80
L1	103
R	14-26
	8.00
Finitura	GALV.
Ricambi
cod.	VC3102.C16
Art.	5300.16
F	M16
S	6
H	38
A	50.5
B	27
S1	8
H1	50
C	90
L	47-93
L1	121
R	18-34
	4.00
Finitura	GALV.
Ricambi	Tabella ricambi
cod.	VC3102.C20
Art.	5300.20
F	M20
S	8
H	47
A	69
B	33
S1	8
H1	65
C	131
L	60-98
L1	130
R	20-55
	6.00
Finitura	GALV.
Ricambi
cod.	VC3102.C24
Art.	5300.24
F	M24
S	8
H	52
A	69
B	33
S1	12
H1	75
C	131
L	60-115
L1	152
R	25-47
	4.00
Finitura	GALV.
Ricambi

Ricambi per VC3102.C16

X Chiudi

Cod.	Immagine	Descrizione		Finitura
RC1202.A18		PIN WITH SEEGER	1.00	GALV.

Ricambi per VC3102.C16X
Cod.	RC1202.A18
Immagine
Descrizione	PIN WITH SEEGER
	1.00
Finitura	GALV.
