VC1312

Quick Overview

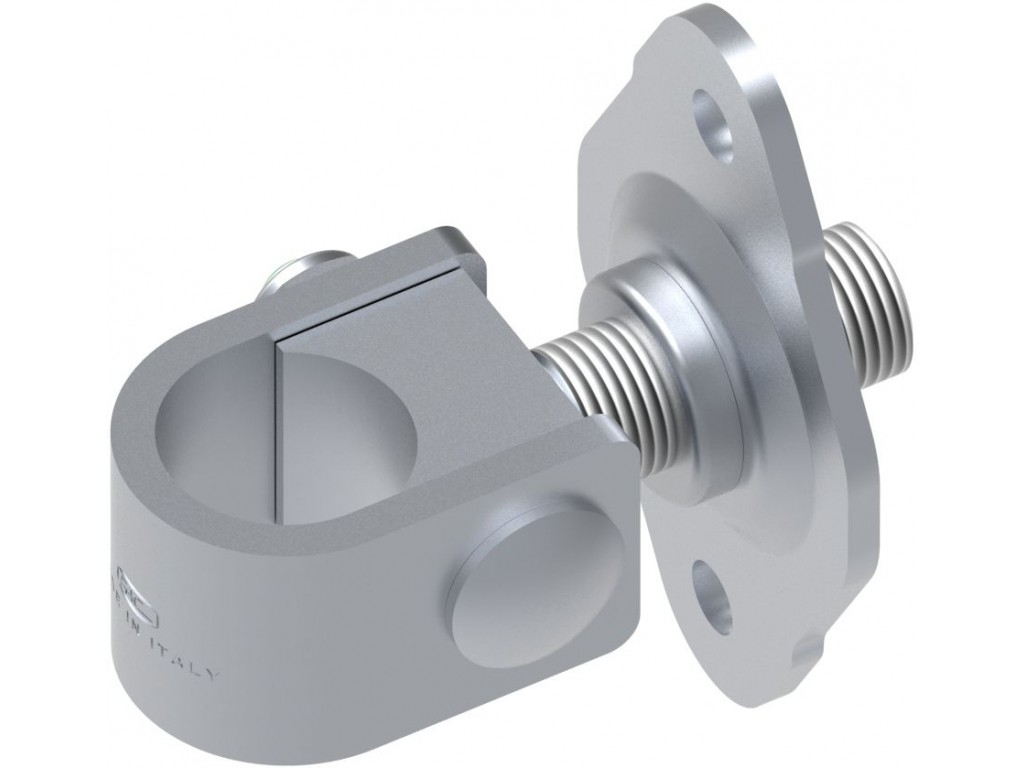

Wrap-around hinge with deep-drawn 2 holes plate to fix

Details

Data sheet

Request product information

Name *
Company
Country
City
Phone *
Email *
Web site
Product
Cod. / Item
Requests *
Privacy Policy *
- By submitting this form, I agree to the privacy process and confirm that I will read all the conditions set out in the privacy page of this site.

What's 16 + 11 =

* Required Fields

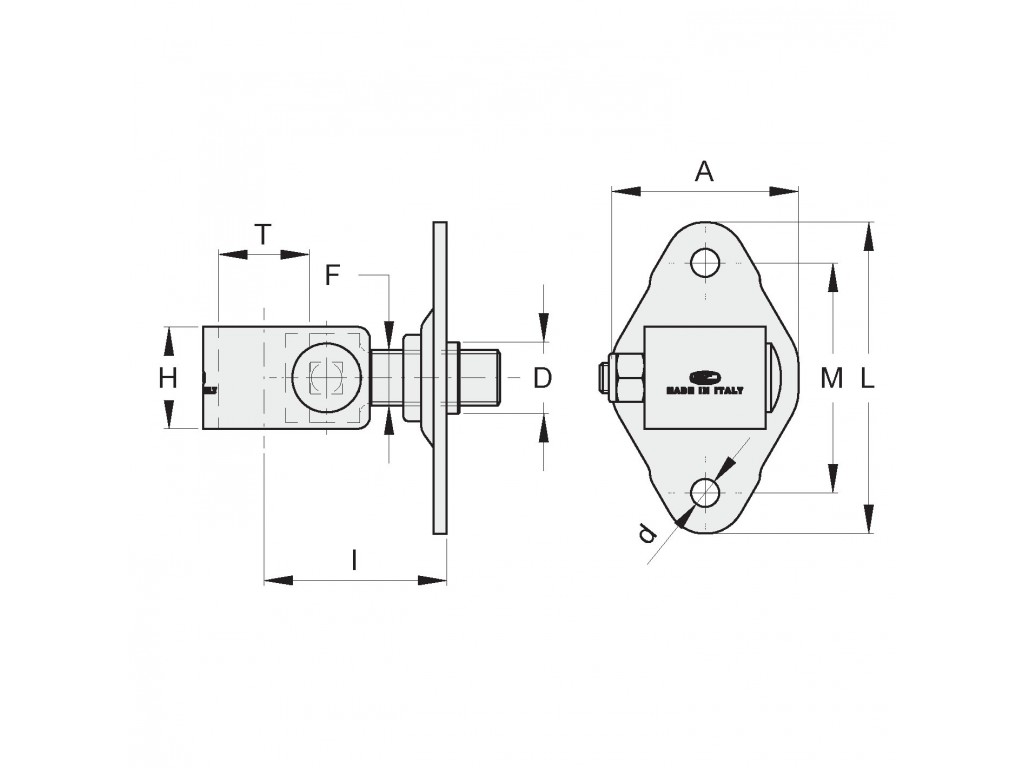

Cod.	Art.	F	H	T	I	D	d	L	A	M		Finitura	Ricambi
VC1312.A18	142B.18	M18	35	30	51-74	23	9	100	60	74	6.00	GALV.	Ric.
VC1312.A22	142B.22	M22	40	35	58-85	28	11	122	73	90	4.00	GALV.	Ric.

Specifiche
cod.	VC1312.A18
Art.	142B.18
F	M18
H	35
T	30
I	51-74
D	23
d	9
L	100
A	60
M	74
	6.00
Finitura	GALV.
Ricambi	Tabella ricambi
cod.	VC1312.A22
Art.	142B.22
F	M22
H	40
T	35
I	58-85
D	28
d	11
L	122
A	73
M	90
	4.00
Finitura	GALV.
Ricambi	Tabella ricambi

Ricambi per VC1312.A18

X Chiudi

Cod.	Immagine	Descrizione		Finitura
RC1103.018		Wrap-around bracket for wrap-around hinges	1.00	GALV.
RC1012.018		Deep-drawn 2 hole plate to fix	10.00	GALV.

Ricambi per VC1312.A22

X Chiudi

Cod.	Immagine	Descrizione		Finitura
RC1103.022		Wrap-around bracket for wrap-around hinges	1.00	GALV.
RC1012.022		Deep-drawn 2 hole plate to fix	10.00	GALV.

Ricambi per VC1312.A18X
Cod.	RC1103.018
Immagine
Descrizione	Wrap-around bracket for wrap-around hinges
	1.00
Finitura	GALV.
Cod.	RC1012.018
Immagine
Descrizione	Deep-drawn 2 hole plate to fix
	10.00
Finitura	GALV.

Ricambi per VC1312.A22X
Cod.	RC1103.022
Immagine
Descrizione	Wrap-around bracket for wrap-around hinges
	1.00
Finitura	GALV.
Cod.	RC1012.022
Immagine
Descrizione	Deep-drawn 2 hole plate to fix
	10.00
Finitura	GALV.

portatan° cuscinettipezzi per confezione
