VC1306

Quick Overview

Adjustable wrap-around hinge with deep-drawn 4 holes plate to fix (patented)

Details

Data sheet

Request product information

Name *
Company
Country
City
Phone *
Email *
Web site
Product
Cod. / Item
Requests *
Privacy Policy *
- By submitting this form, I agree to the privacy process and confirm that I will read all the conditions set out in the privacy page of this site.

What's 9 + 9 =

* Required Fields

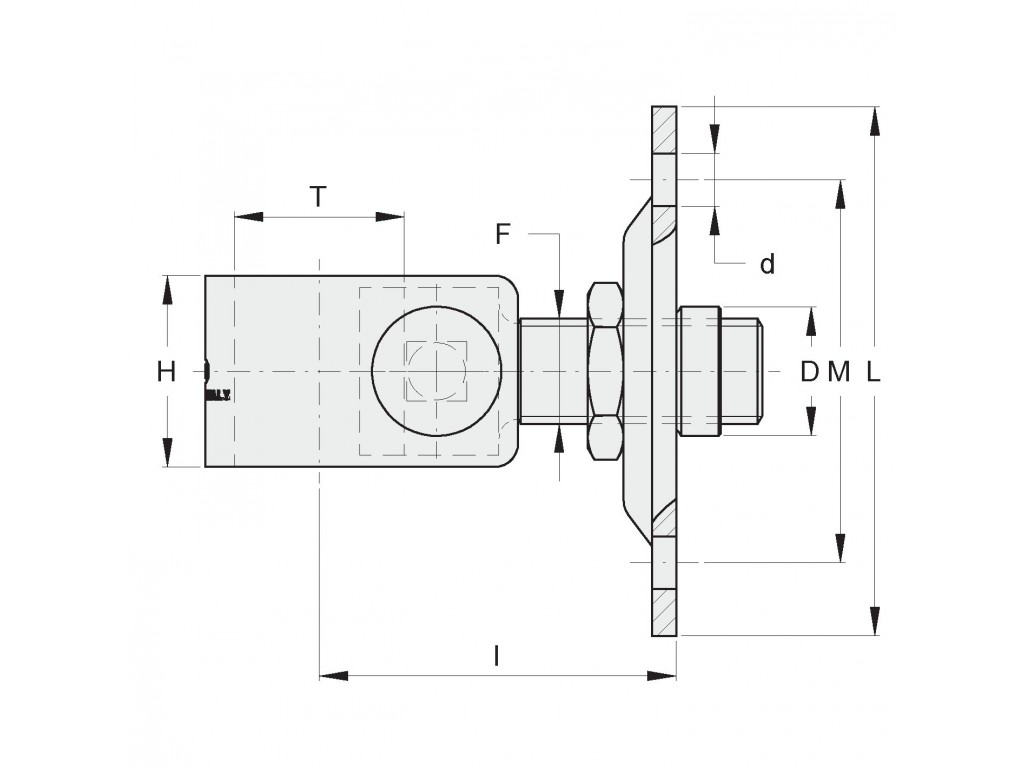

Cod.	Art.	F	H	T	I	D	d	L	M		Finitura	Ricambi
VC1306.A18	241B.18	M18	35	30	55-73	22	9	90x90	64x64	6.00	GALV.	Ric.
VC1306.A22	241B.22	M22	40	35	61-88	27	11	110x110	80x80	4.00	GALV.	Ric.
VC1306.A27	241B.27	M27	45	40	73-93	33	13	130x130	90x90	4.00	GALV.	Ric.

Specifiche
cod.	VC1306.A18
Art.	241B.18
F	M18
H	35
T	30
I	55-73
D	22
d	9
L	90x90
M	64x64
	6.00
Finitura	GALV.
Ricambi	Tabella ricambi
cod.	VC1306.A22
Art.	241B.22
F	M22
H	40
T	35
I	61-88
D	27
d	11
L	110x110
M	80x80
	4.00
Finitura	GALV.
Ricambi	Tabella ricambi
cod.	VC1306.A27
Art.	241B.27
F	M27
H	45
T	40
I	73-93
D	33
d	13
L	130x130
M	90x90
	4.00
Finitura	GALV.
Ricambi	Tabella ricambi

Ricambi per VC1306.A18

X Chiudi

Cod.	Immagine	Descrizione		Finitura
RC1024.018		ADJUSTABLE PLATE	10.00	GALV.
RC1103.018		Wrap-around bracket for wrap-around hinges	1.00	GALV.

Ricambi per VC1306.A22

X Chiudi

Cod.	Immagine	Descrizione		Finitura
RC1024.022		ADJUSTABLE PLATE	6.00	GALV.
RC1103.022		Wrap-around bracket for wrap-around hinges	1.00	GALV.

Ricambi per VC1306.A27

X Chiudi

Cod.	Immagine	Descrizione		Finitura
RC1024.027		ADJUSTABLE PLATE	6.00	GALV.
RC1103.027		Wrap-around bracket for wrap-around hinges	1.00	GALV.

Ricambi per VC1306.A18X
Cod.	RC1024.018
Immagine
Descrizione	ADJUSTABLE PLATE
	10.00
Finitura	GALV.
Cod.	RC1103.018
Immagine
Descrizione	Wrap-around bracket for wrap-around hinges
	1.00
Finitura	GALV.

Ricambi per VC1306.A22X
Cod.	RC1024.022
Immagine
Descrizione	ADJUSTABLE PLATE
	6.00
Finitura	GALV.
Cod.	RC1103.022
Immagine
Descrizione	Wrap-around bracket for wrap-around hinges
	1.00
Finitura	GALV.

Ricambi per VC1306.A27X
Cod.	RC1024.027
Immagine
Descrizione	ADJUSTABLE PLATE
	6.00
Finitura	GALV.
Cod.	RC1103.027
Immagine
Descrizione	Wrap-around bracket for wrap-around hinges
	1.00
Finitura	GALV.

portatan° cuscinettipezzi per confezione
