VC1213

Quick Overview

Hinge with welded bracket on with deep-drawn 4 holes plate to fix

Details

Data sheet

Request product information

Name *
Company
Country
City
Phone *
Email *
Web site
Product
Cod. / Item
Requests *
Privacy Policy *
- By submitting this form, I agree to the privacy process and confirm that I will read all the conditions set out in the privacy page of this site.

What's 20 + 20 =

* Required Fields

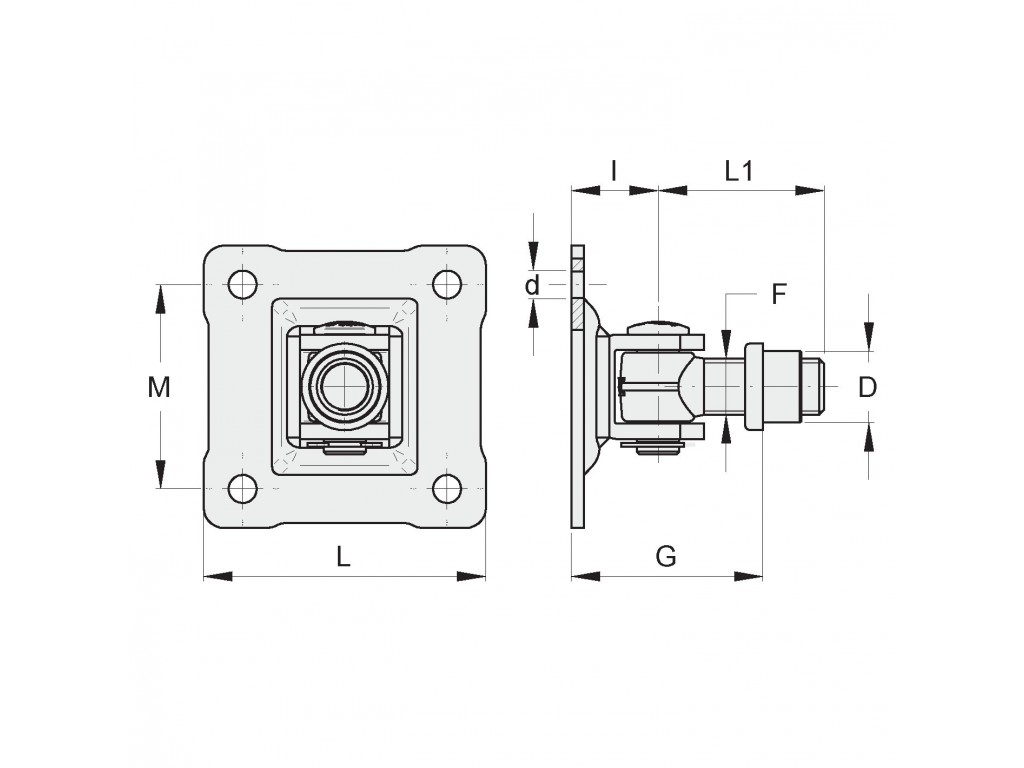

Cod.	Art.	F	G	D	d	I	L1	L	M		Finitura	Ricambi
VC1213.A18	233.18C	M18	47-73	23	9	30	55	90x90	64x64	8.00	GALV.	Ric.
VC1213.A22	233.22C	M22	55-86	28	11	34	65	110x110	80x80	4.00	GALV.	Ric.
VC1213.A27	233.27C	M27	72-107	35	13	46	76	130x130	90x90	4.00	GALV.	Ric.

Specifiche
cod.	VC1213.A18
Art.	233.18C
F	M18
G	47-73
D	23
d	9
I	30
L1	55
L	90x90
M	64x64
	8.00
Finitura	GALV.
Ricambi	Tabella ricambi
cod.	VC1213.A22
Art.	233.22C
F	M22
G	55-86
D	28
d	11
I	34
L1	65
L	110x110
M	80x80
	4.00
Finitura	GALV.
Ricambi	Tabella ricambi
cod.	VC1213.A27
Art.	233.27C
F	M27
G	72-107
D	35
d	13
I	46
L1	76
L	130x130
M	90x90
	4.00
Finitura	GALV.
Ricambi	Tabella ricambi

Ricambi per VC1213.A18

X Chiudi

Cod.	Descrizione		Finitura
RC1001.018.L	BUSHING	10.00	BLACK
RC1032.018	PLATE 2 HOLES WITH BRACKET	10.00	GALV.
RC1202.A18	PIN WITH SEEGER	1.00	GALV.

Ricambi per VC1213.A22

X Chiudi

Cod.	Descrizione		Finitura
RC1001.022.L	BUSHING	10.00	BLACK
RC1032.022	PLATE 2 HOLES WITH BRACKET	1.00	GALV.
RC1202.A22	PIN WITH SEEGER	1.00	GALV.

Ricambi per VC1213.A27

X Chiudi

Cod.	Descrizione		Finitura
RC1001.027.L	BUSHING	1.00	BLACK
RC1032.027	PLATE 2 HOLES WITH BRACKET	1.00	GALV.
RC1202.A27	PIN WITH SEEGER	1.00	GALV.

Ricambi per VC1213.A18X
Cod.	RC1001.018.L
Immagine
Descrizione	BUSHING
	10.00
Finitura	BLACK
Cod.	RC1032.018
Immagine
Descrizione	PLATE 2 HOLES WITH BRACKET
	10.00
Finitura	GALV.
Cod.	RC1202.A18
Immagine
Descrizione	PIN WITH SEEGER
	1.00
Finitura	GALV.

Ricambi per VC1213.A22X
Cod.	RC1001.022.L
Immagine
Descrizione	BUSHING
	10.00
Finitura	BLACK
Cod.	RC1032.022
Immagine
Descrizione	PLATE 2 HOLES WITH BRACKET
	1.00
Finitura	GALV.
Cod.	RC1202.A22
Immagine
Descrizione	PIN WITH SEEGER
	1.00
Finitura	GALV.

Ricambi per VC1213.A27X
Cod.	RC1001.027.L
Immagine
Descrizione	BUSHING
	1.00
Finitura	BLACK
Cod.	RC1032.027
Immagine
Descrizione	PLATE 2 HOLES WITH BRACKET
	1.00
Finitura	GALV.
Cod.	RC1202.A27
Immagine
Descrizione	PIN WITH SEEGER
	1.00
Finitura	GALV.

portatan° cuscinettipezzi per confezione
